Overview
Barcoding serialized inventory allows for quick and easy review of firearm information via scanning.
The Barcode Generator is a tool used to create scalable barcodes to track your on-hand inventory. It permits you to enter a serial number or Handling Unit Name and print a barcode label and apply it to an inventory tag or box. The tool requires that you own a barcode label printer (for small labels) or use printable labels on a larger printer.
Software Needed
• Barcode Generator
Hardware Needed
• Barcode Printer
o Single Barcode Printer
o 1D, 2D, or QR (1D minimum)
o Suggested Printers
▪ DYMO LabelWriter 450 Turbo Thermal Label Printer
▪ Seiko Instruments Smart Label Printer 620, USB, PC/Mac
• Scanner
o 1D, 2D or QR scanner (1D minimum)
o Bluetooth or Wireless
o Suggested Scanners
▪ Rhorawill Handheld Red Light CCD Barcode Scanner|500 Times/Sec USB 1D Bar Code Reader
▪
Esky ES017 Handheld USB Wired Barcode
Scanner - Automatic 1D and 2D QR Code Reader
Supplies Needed
• Dymo Labels 30320 (1 1/8" X 3 1/2")
Instructions for How to Create a Barcode

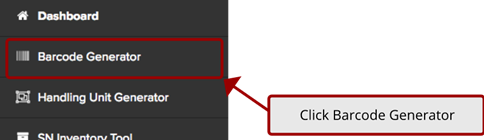

1. From the software portal main menu, click Barcode Generator.
2.

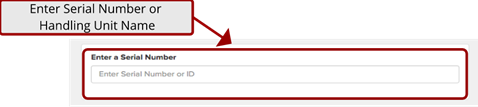

The Barcode Generator screen
will now display. To generate a barcode, enter
the serial number or Handling Unit
Name in the
Enter Serial Number
or ID field.

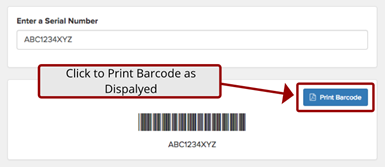

3. The information as entered will
create a barcode
for display. To print, select
the Print button.
Coming Soon
• Multi-Serial Number to Multi-Barcode generator
