Connecting through Wi-Fi

      (Ethernet just needs to be plugged in)

      2.       For Desk 3500/2600 and Move 5000 press the ¤ key (silver target button above the number 3)

      3.       Select “Admin Mode” on the screen

a.       You will be prompted for a password (123456A)

b.       Press the green circle once password is entered

      4.       Navigate to Control Panel > Terminal Settings > Comm means > Wi-Fi > Scan networks

      5.       Select the network that you intend to connect to and enter the password

Locating IP Address

          Wi-Fi

      1.       Navigate to Control Panel > Terminal Settings > Comm means > Wi-Fi > Status > Display

      2.       Scroll down to “IP: “ field

a.       Notate IP as it will need to be placed into host file

          Ethernet

Editing Host File

1. Locate notepad application
1. Notepad, notepad ++, etc.
2. Right click application and select “Run as administrator”
2. Go to File > Open
3. Navigate to host file at: Local Disk (C:)/Windows/System32/drivers/etc/ will appear blank (change txt.files to all files) /hosts
4. Paste correct mapping in host file
1. Paste “ [Insert IP Address Here]

2. Hit the Tab Key on your keyboard

3.  Then enter in "secure.wsstxn.com” in host file (without quotes or brackets)

5. Save file

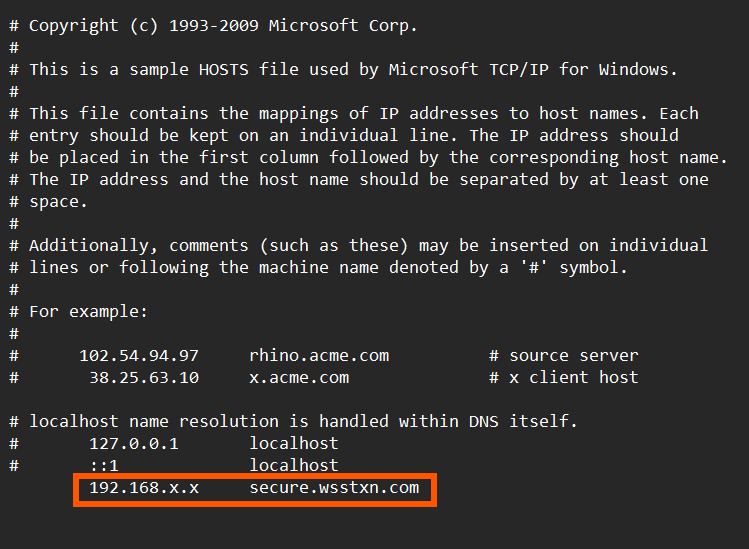

An example of how the host file will look.

Device Configuration Verification

      1.        For Desk 3500 press the ¤ key (silver target button above the number 3)

      2.       Select Admin Mode

      3.       Enter Password 123456A, Press the green Enter key

      4.       Select iConnect-WS

      5.       Select current setup

      6.       Notate SSL enabled status (either 1 or 0)
